TS5213N510 High-Precision Incremental Encoder for Industrial Motion Feedback

The TS5213N510 incremental encoder is designed for accurate rotational position and speed feedback in industrial motion systems. With stable signal output and compact construction, it supports precise control requirements in automation equipment.

Product Specifications

Product Specifications	Details
Product Type	Incremental Rotary Encoder
Encoder Series	OIH48 Series
Resolution	2048 Pulses Per Revolution
Output Signal	A/B/Z Phase Signal
Supply Voltage	DC 5V
Output Type	Line Driver
Mounting Style	Hollow Shaft
Protection Rating	IP40

Performance Features

High-resolution position feedback
Stable digital signal transmission
Compact hollow shaft structure
Suitable for high-speed rotation monitoring
Reliable feedback for motion control systems

Typical Applications

Servo motor feedback systems
CNC machine tools
Industrial robots
Packaging machinery
Automated production equipment

Installation Guide

Mount the encoder securely on the rotating shaft.
Align the hollow shaft and mechanical coupling correctly.
Connect power and signal wiring according to the system configuration.
Check A/B/Z signal feedback before operation.
Verify encoder direction and rotation accuracy.

FAQ

Q1: What is the main function of this encoder?
A: It provides rotational position and speed feedback.

Q2: Is this an incremental encoder?
A: Yes, it provides incremental pulse output signals.

Q3: What type of output signal does it provide?
A: It provides A/B/Z phase digital signals.

Q4: Where is this encoder commonly used?
A: It is used in CNC, robotics, and automation systems.

Q5: Does it support precision motion control?
A: Yes, it provides accurate feedback for motion applications.

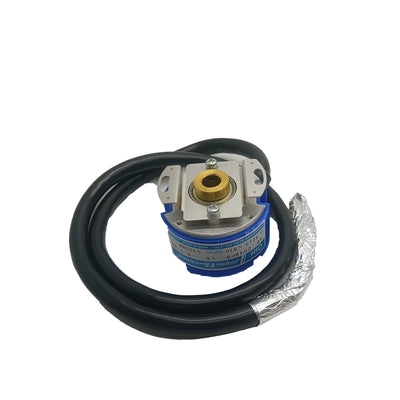

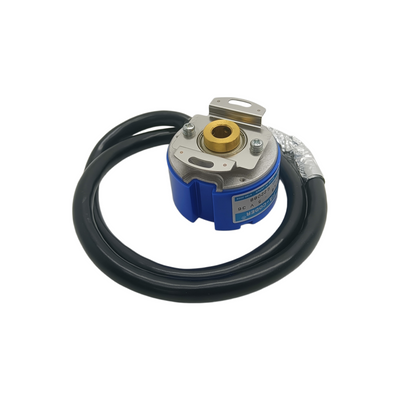

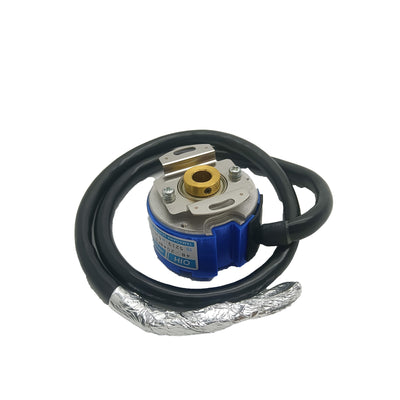

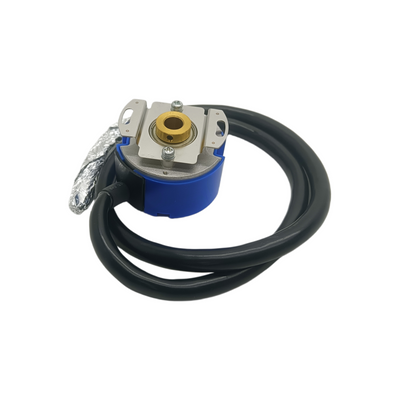

TS5213N510 Genuine New TAMAGAWA OIH482048P6L65V Encoder
