PLC Remote I/O and Distributed I/O: A Comprehensive Analysis and Practical Applications

PLC Remote I/O and Distributed I/O: Complete Guide and Applications

In industrial automation, I/O architecture affects much more than wiring. It influences cabinet layout, commissioning time, maintenance efficiency, network design, and future system expansion. As machines and production lines become larger and more modular, engineers increasingly move I/O closer to field devices instead of routing every signal back to one central control cabinet.

That is where remote I/O and distributed I/O come into the discussion.

These two terms are often used together, and in many real projects they overlap. Still, they are not always understood in exactly the same way. Some engineers use them almost interchangeably, while others treat them as two different approaches with different architectural meanings. For machine builders, integrators, and maintenance teams, understanding the difference helps avoid design mistakes and makes hardware selection much easier.

This article explains the background, structure, benefits, differences, and practical applications of PLC remote I/O and distributed I/O in a way that is relevant to modern industrial systems.

Why This Topic Matters

Traditional centralized I/O works well for small machines. Once equipment becomes larger, centralized wiring starts to create problems. Long cable runs increase installation cost. Panel wiring becomes harder to manage. Maintenance takes longer. Future expansion becomes less convenient.

Remote and distributed I/O architectures solve these problems by moving signal collection closer to field devices. Sensors, switches, solenoids, valves, and actuators can be connected to local I/O stations, while the controller communicates with those stations through an industrial network.

The result is a cleaner structure, shorter wiring paths, and a more flexible automation system.

Historical Background

The discussion around remote I/O and distributed I/O did not start with modern PLCs alone. Earlier computer-based control systems already had to address the question of where I/O should be placed and how signals should be exchanged between field equipment and the control core.

Figure 1. Evolution from DDC to modern PLC and DCS I/O architecture

In earlier direct digital control environments, centralized computing hardware communicated with field-side equipment installed at different plant locations. As control technology evolved, DCS and PLC platforms became the standard in industrial automation. Even so, the old design question remained the same: should I/O stay close to the controller, or should it be placed closer to the process?

That historical background is one reason the terminology still causes confusion today. In some industries, the emphasis is on the physical distance between controller and I/O. In others, the focus is on overall system architecture and how control is distributed.

What Is Remote I/O?

Remote I/O refers to I/O modules installed away from the main PLC or control cabinet. Instead of wiring every input and output directly to the central rack, field devices are connected to an I/O station located closer to the machine or process area. The PLC then exchanges data with that I/O station through a communication network.

In practical terms, remote I/O is an extension of the PLC’s input and output capability. It helps bring the I/O interface into the field while keeping control logic in the main controller.

Figure 2. Typical PLC remote I/O architecture in an industrial system

A remote I/O station usually does not act like a full controller. Its primary job is to collect input signals, transmit them to the PLC, receive output commands, and pass those commands to field devices.

Key features of remote I/O

• Installed away from the main PLC cabinet
• Connected through an industrial network
• Reduces long wiring runs
• Keeps control logic centralized
• Improves field installation flexibility

What Is Distributed I/O?

Distributed I/O generally describes an I/O architecture in which modules are spread across multiple sections of a machine, production line, or plant. These modules communicate with the control system through a high-speed industrial bus or network and support a more decentralized layout.

In many real-world applications, distributed I/O looks very similar to remote I/O. The difference is often in how the system is viewed. Remote I/O usually emphasizes that the I/O is physically remote from a central PLC. Distributed I/O often emphasizes the broader structure of the automation system, especially when multiple machine sections, control zones, or modular stations are involved.

Figure 3. Distributed I/O layout across multiple machine sections

From an engineering perspective, distributed I/O is closely tied to scalable, modular system design. It is especially useful where different areas of equipment need local signal access without filling one central cabinet with excessive wiring.

Key features of distributed I/O

• I/O modules are spread across different machine or plant areas
• Designed for modular and scalable layouts
• Supports fast communication and easier expansion
• Well suited to larger systems and multi-station equipment
• Often associated with decentralized automation structures

Remote I/O vs Distributed I/O

Figure 4. Side-by-side comparison of remote I/O and distributed I/O

This is the question most engineers ask first: are they really different?

The answer depends on context.

In day-to-day PLC projects, many people use both terms loosely because both involve placing I/O away from a central cabinet. In that sense, the two concepts overlap. However, there is still a useful distinction.

Remote I/O
Remote I/O usually describes a field I/O station that extends a single central controller. The focus is on distance. The I/O is remote, but control remains concentrated in one PLC.

Distributed I/O
Distributed I/O usually describes a broader machine or plant structure in which I/O is decentralized across multiple areas. The focus is on architecture. The system is laid out in a distributed way for flexibility, modularity, and easier scaling.

A simple comparison

• Remote I/O extends one PLC into the field
• Distributed I/O supports a more decentralized automation layout

In practice, one system can include both ideas at the same time. A distributed machine may use remote I/O stations in several different sections.

Benefits of Remote I/O

Reduced wiring cost
Signals do not need to travel all the way back to the main control cabinet, which lowers cable usage and installation time.

Cleaner panel design
When large numbers of field signals are removed from the main cabinet, the panel becomes easier to design, organize, and service.

Easier commissioning
With I/O located near field devices, installers and technicians can verify wiring faster and identify signal issues more easily.

Better machine layout flexibility
Remote I/O makes it easier to build machines where sensors and actuators are physically spread out across different positions.

Improved maintenance
Technicians can troubleshoot at the local I/O location instead of tracing long cable runs through the cabinet and machine frame.

Benefits of Distributed I/O

Stronger modularity
Different machine zones can be designed as functional sections with local I/O, which simplifies machine building and future expansion.

Better scalability
Additional stations or machine modules can often be added without redesigning the entire central wiring structure.

More efficient system organization
Distributed I/O fits modern automation layouts where equipment is divided into processing cells, stations, or line segments.

Better support for large applications
Long production lines, complex process systems, and large machinery benefit from decentralized signal handling.

Improved engineering flexibility
Distributed I/O gives designers more freedom in cabinet placement, machine layout, and communication structure.

Typical Applications of Remote I/O

Remote I/O is widely used in systems where the main issue is physical distance between the controller and field devices.

Common examples include:

• Packaging equipment
• Conveyor systems
• Machine tools
• CNC auxiliary systems
• Pump and valve skids
• Utility equipment
• Water treatment systems
• Assembly machines with spread-out sensors and actuators

In these cases, remote I/O helps reduce installation complexity while keeping control logic centralized.

Typical Applications of Distributed I/O

Distributed I/O is especially useful where the machine or process is modular by design.

Common examples include:

• Multi-station production lines
• Large process automation systems
• Modular packaging lines
• Robot cells
• Automated material handling systems
• Distributed manufacturing islands
• Plants requiring future line expansion
• Systems with multiple equipment zones

In these environments, the value is not limited to shorter wiring. The real benefit is better system structure.

Representative Product Examples

Allen-Bradley FLEX I/O
Allen-Bradley FLEX I/O is a well-known modular I/O platform used in decentralized control layouts. It supports flexible I/O expansion and works well when field wiring needs to stay close to sensors and actuators rather than returning to one large cabinet.

Because of its modular design, FLEX I/O is often referenced in discussions about both remote I/O and distributed I/O. It is a practical fit for systems that need clean field installation and scalable I/O structure.

Figure 5. Modular field I/O example for scalable machine automation

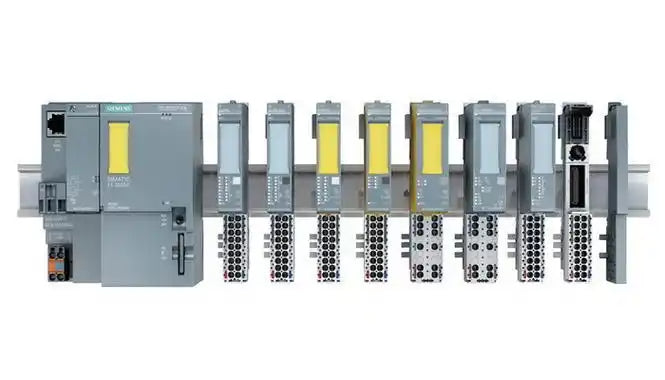

Siemens ET 200SP
Siemens ET 200SP is a compact and widely used distributed I/O platform. It is popular in machine building because it offers flexible module combinations, efficient space usage, and strong compatibility with modern industrial communication standards.

For equipment builders who need a compact and expandable field I/O solution, ET 200SP is often a strong choice. It is especially suitable where multiple I/O channels must be arranged efficiently across different parts of a machine or line.

How to Choose the Right I/O Architecture

There is no single answer for every automation project. The best architecture depends on machine size, signal distribution, network design, maintenance expectations, and expansion plans.

Choose remote I/O when:

• One PLC remains the clear central controller
• The main goal is reducing field wiring
• The machine is spread out physically
• You want a straightforward extension of PLC I/O

Choose distributed I/O when:

• The system is modular and scalable
• Different machine sections need local I/O access
• Future expansion is likely
• A decentralized architecture makes engineering sense

The most important point is to design the I/O structure around the machine, not around terminology.

Common Mistakes to Avoid

A common mistake is assuming that all decentralized I/O solutions are the same. They are not. Different product families vary in communication method, module density, environmental suitability, diagnostics, and installation style.

Another mistake is choosing based only on point count. In real industrial systems, factors such as distance, panel space, maintenance access, response time, and future modification are just as important.

It is also easy to overcomplicate the discussion. In most projects, the key question is simple: does the application need a centralized I/O structure, a remote extension of the PLC, or a more modular distributed layout?

Conclusion

PLC remote I/O and distributed I/O are both essential concepts in modern automation. They help engineers reduce wiring, improve system flexibility, and build cleaner, more maintainable machines.

Remote I/O is usually the better description when one PLC extends its I/O into the field through communication modules. Distributed I/O is usually the better description when the overall system is designed around a decentralized, modular structure.

In real applications, the two ideas often work together. That is why understanding the purpose behind the architecture matters more than debating the wording. When the machine layout, communication method, maintenance needs, and expansion goals are clear, choosing the right I/O approach becomes much easier.

FAQ

What is the main purpose of PLC remote I/O?

Its main purpose is to place I/O closer to field devices, reduce long cable runs, and simplify installation while keeping control logic in the PLC.

Is distributed I/O more advanced than remote I/O?

Not always, but it is often used in more modular and scalable system designs where I/O is spread across multiple machine areas.

Does remote I/O perform control logic by itself?

In most PLC systems, remote I/O mainly handles signal exchange. The main control logic remains in the PLC.

Where is distributed I/O commonly used?

It is commonly used in production lines, modular machines, robot cells, and larger automation systems with multiple operating zones.

Can one machine use both remote I/O and distributed I/O ideas?

Yes. A machine can have remote I/O stations while also being designed as a distributed automation system.
